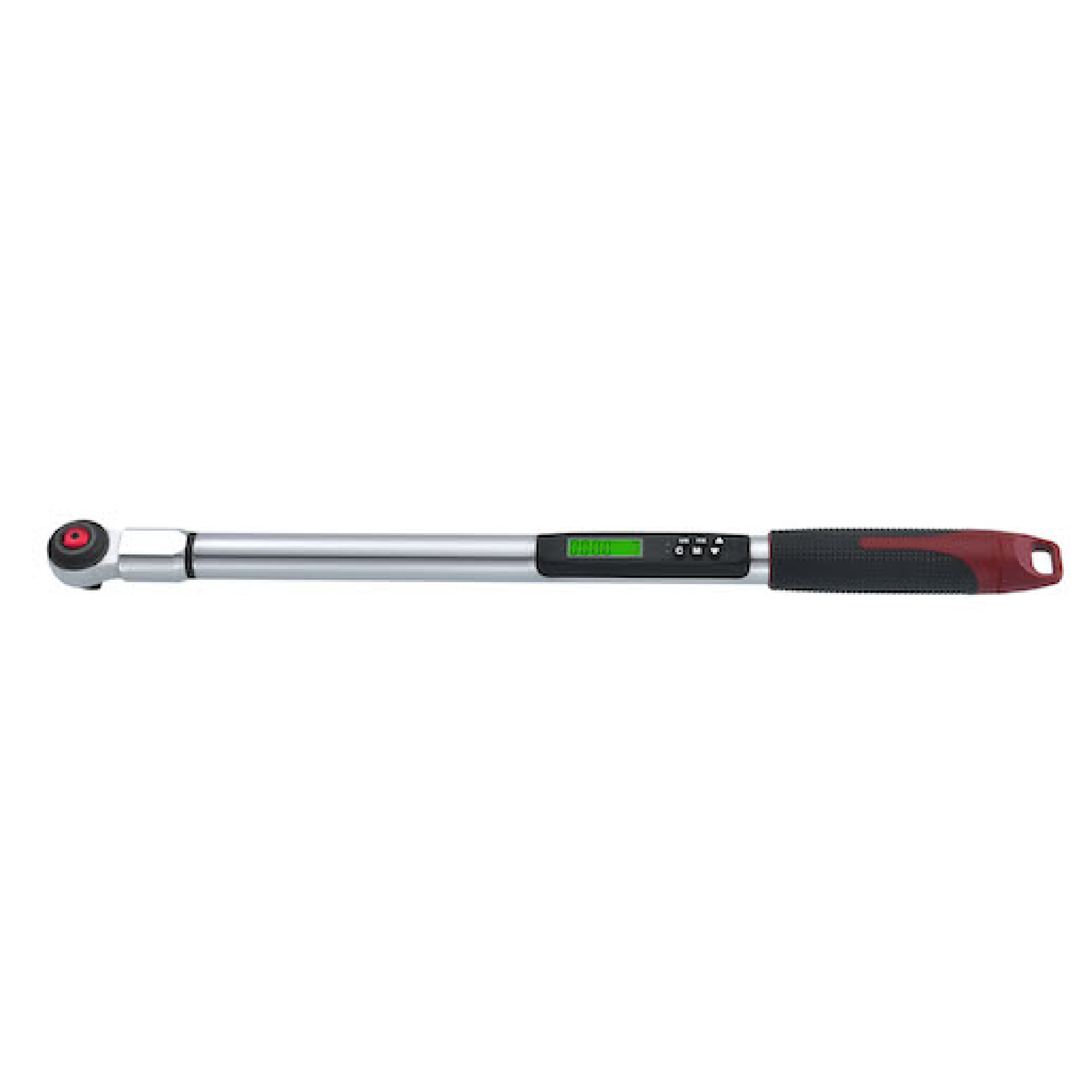

Digital Interchangeable Torque Wrench
Accuracy" CW:±2%, CCW:±3%
Min.Scale Unit" RH-DGTI30-1(0.1 Nm).other(0.1Nm)
| Model No | T | Driver | Max. Operating Range | Setting Range | Max. Torque Load / DIN Standards (Nm) |
| RT-DGTQ30-1 | 72 | 1/4" | 30 Nm | 1.5~30 Nm▕ 1.11~22.12 lb.ft▕ 13.3~265.5 lb.in▕ 15.3~306.1 kg.cm | 88.0/62.0 |
| RT-DGTQ30-2 | 72 | 3/8" | 30 Nm | 1.5~30 Nm▕ 1.11~22.12 lb.ft▕ 13.3~265.5 lb.in▕ 15.3~306.1 kg.cm | 294.0/202.0 |
| RT-DGTQ60-3 | 72 | 3/8" | 60 Nm | 3.0~60 Nm▕ 2.22~44.24 lb.ft▕ 26.6~531 lb.in▕ 30.6~612.2 kg.cm | 294.0/202.0 |
| RT-DGTQ135-2 | 72 | 3/8" | 135 Nm | 6.8~135 Nm▕ 5.0~99.5 lb.ft.▕ 60~1195 lb.in▕ 69~1378 kg.cm | 294.0/202.0 |
| RT-DGTQ135-3 | 72 | 1/2" | 135 Nm | 6.8~135 Nm▕ 5.0~99.5 lb.ft▕ 60~1195 lb.in▕ 69~1378 kg.cm | 735.0/512.0 |
| RT-DGTQ200-3 | 72 | 1/2" | 200 Nm | 10~200 Nm▕ 7.4~147.5 lb.ft▕ 88~1770 lb.in▕ 102~2041 kg.cm | 735.0/512.0 |
| RT-DGTQ340-3 | 72 | 1/2" | 340 Nm | 17~340 Nm▕ 12.5~250.7 lb.ft▕ 150~3009 lb.in▕ 173~3469 kg.cm | 735.0/512.0 |
| RT-DGTQ600-4 | 24 | 3/4" | 600 Nm | 60~600 Nm▕ 44.28~442.8 lb.ft▕ 53.11~5311 lb.in▕ 612~6120 kg.cm | 1836/1412 |
| RT-DGTQ800-4 | 24 | 3/4" | 800 Nm | 80~800 Nm▕ 59.04~590.4 lb.ft▕ 708.1~7081 lb.in▕ 816~8160 kg.cm | 1836/1412 |
| RT-DGTQ800-5 | 24 | 1" | 800 Nm | 80~800 Nm▕ 59.04~590.4 lb.ft▕ 708.1~7081 lb.in▕ 816~8160 kg.cm | 3270/2515 |
| RT-DGTQ1000-4 | 24 | 3/4" | 1000 Nm | 100~1000 Nm▕ 73.8~738 lb.ft▕ 885.1 8851 lb.in▕ 10.2~102 kg.m | 1836/1412 |
| RT-DGTQ1000-5 | 24 | 1" | 1000 Nm | 100~1000 Nm▕ 73.8~738 lb.ft▕ 885.1 8851 lb.in▕ 10.2~102 kg.m | 3270/2515 |
