INTERNAL COIL SPRING COMPRESSOR

(FOR SPRING DIAMETER Ø75-155 MM)
ITEM NO:RA3299

FEATURE

Suitable for coil springs with internal diameter > Ø 75 mm and external diameter < Ø 155 mm

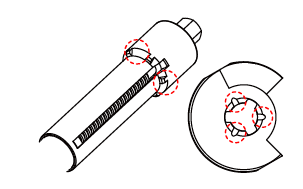

Special pins on tool body to mesh with grooves on discs to create a secure connection (see illustration on the right)

Can be operated with an air/impact wrench

Provided with product liability insurance

Break point: 12,900 kgf (ca. 126,505 N)

Max load: 6,525 kgf (ca. 64,000 N)


SPECIFIC

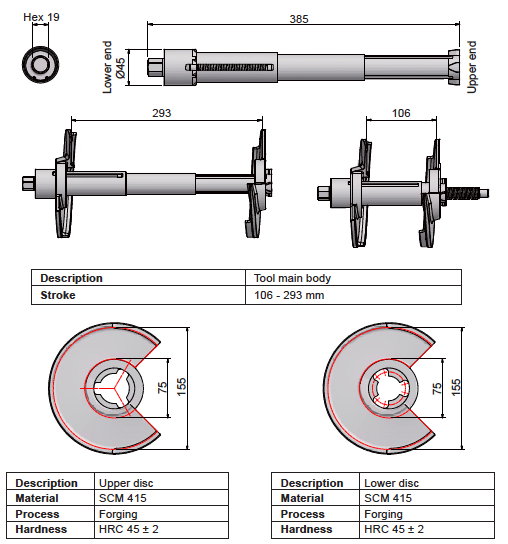

All figures listed below, unless otherwise stated, are in millimeter (mm)
