EXTRA LONG DOUBLE RING WRENCH
| LDR EXTRA LONG DOUBLE RING WRENCH | ||||||

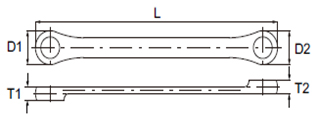

| Model No. | Size | D1 | D2 | T1 | T2 | L |
| 300440101011 | 8 mm x 9 mm | 11.8 | 14.3 | 7.0 | 8.0 | 235 |
| 300440101021 | 8 mm x 10 mm | 11.8 | 14.3 | 7.0 | 8.0 | 235 |
| 300440101031 | 9 mm x 11 mm | 14.5 | 16.8 | 8.0 | 9.0 | 290 |
| 300440101041 | 10 mm x 11 mm | 14.5 | 16.8 | 8.0 | 9.0 | 290 |
| 300440101051 | 10 mm x 12 mm | 14.5 | 16.8 | 8.0 | 9.0 | 290 |
| 300440101061 | 11 mm x 13 mm | 16.9 | 19.9 | 10.0 | 11.0 | 328 |
| 300440101071 | 12 mm x 13 mm | 16.9 | 19.9 | 10.0 | 11.0 | 328 |
| 300440101081 | 12 mm x 14 mm | 16.9 | 19.9 | 10.0 | 11.0 | 328 |
| 300440101091 | 13 mm x 15 mm | 18.8 | 22.2 | 11.0 | 12.0 | 368 |
| 300440101101 | 14 mm x 15 mm | 18.8 | 22.2 | 11.0 | 12.0 | 368 |
| 300440101111 | 14 mm x 17 mm | 21.0 | 24.3 | 12.5 | 13.5 | 388 |
| 300440101121 | 16 mm x 17 mm | 21.0 | 24.3 | 12.5 | 13.5 | 388 |
| 300440101131 | 16 mm x 18 mm | 24.3 | 26.7 | 14.0 | 15.0 | 408 |
| 300440101141 | 17mm x 19 mm | 24.3 | 26.7 | 14.0 | 15.0 | 408 |
| 300440101151 | 18 mm x 19 mm | 24.3 | 26.7 | 14.0 | 15.0 | 408 |
| 300440101161 | 19 mm x 21 mm | 27.8 | 29.7 | 15.0 | 16.0 | 415 |
| 300440101171 | 19 mm x 22 mm | 27.8 | 29.7 | 15.0 | 16.0 | 415 |
| 300440101181 | 20 mm x 21 mm | 27.8 | 29.7 | 15.0 | 16.0 | 415 |
| 300440101191 | 20 mm x 22 mm | 27.8 | 29.7 | 15.0 | 16.0 | 415 |
| 300440101201 | 21 mm x 23 mm | 29.8 | 32.8 | 16.0 | 17.0 | 430 |
| 300440101211 | 22 mm x 24 mm | 29.8 | 32.8 | 16.0 | 17.0 | 430 |
| 300440101221 | 23 mm x 26 mm | 34.0 | 37.0 | 17.0 | 18.0 | 445 |
| 300440101231 | 24 mm x 27 mm | 34.0 | 39.0 | 17.0 | 18.0 | 445 |
| 300440101241 | 25 mm x 28 mm | 34.0 | 39.0 | 17.0 | 18.0 | 445 |
| 300440101251 | 29 mm x 32 mm | 44.0 | 47.0 | 18.0 | 19.0 | 460 |
| 300440101261 | 30 mm x 32 mm | 44.0 | 47.0 | 18.0 | 19.0 | 460 |
